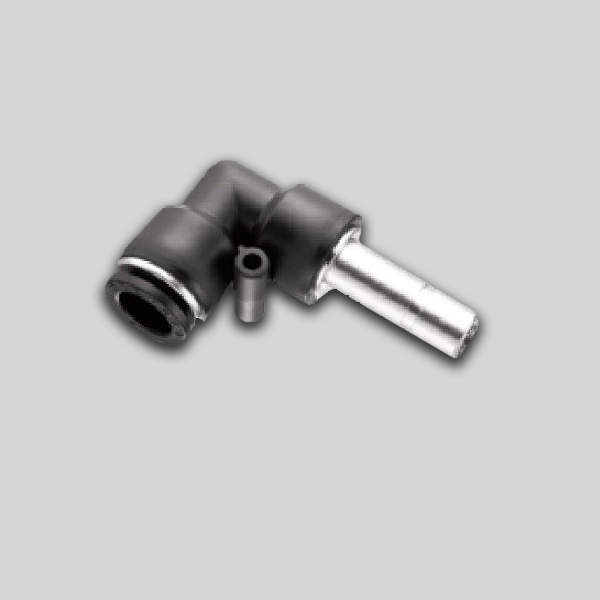

90 Degree Equal Stem Elbow

Prevost Conex Fittings – Polymer – Push In Fitting

INSTALLATION: Safe, easy installation Interior and exterior hex flange; Tapered or parallel thread with gasket Swivel body on polymer range

CONNECTION: Easy to connect by simply pushing the tube into the coupling

DISCONNECTION: Easy handling Disconnection by pressing the disconnection bush, which pushes the lugs and frees the tube from the coupling; Responsive self-positioning ring system

IMMEDIATE SEAL: Teflon-coated tapered thread NBR gasket in bottom of groove on cylindrical thread

TUBE RETENTION: Excellent grip of tube in coupling, Stainless steel prongs, Excellent grip on outside of tube

RESISTANCE: Vibration resistance, Excellent connection, even in particularly difficult conditions (vibrations, alignment problems)

Type of fluid: Compressed air

Service pressure: 0 to 10 bar 0 to 150 PSI

Service temperature: 0 to 60°C 32 to 140°F
